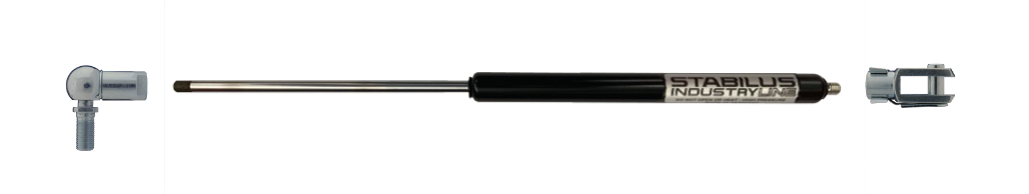

IndustryLine Gas Springs
G0615005010174WX22GG200280N
| Gas Spring P/N | 620716 |
| Product | G |
| Series | 0615 (6mm Rod x 15mm Cylinder) |
| Stroke (mm) | 50 |
| Damping or Breaking Direction | 1 |
| Installation Length (mm) | 174 |
| End Fitting (Piston Rod End) | WX22 |
| End Fitting (Cylinder End) | GG20 |
| Force (N) | 280 |
| Piston End Fitting P/N | 258633 |
| Piston End Fitting Type | Socket with Ball Stud |
| Piston End Fitting Description | WX22 M5/M8 CS10 Ball Joint 10mm 6mm Rod (w/Stud) |
| Piston End Fitting Thread | M5 |
| Piston End Fitting Installation Length (mm) | 22 |
| Piston End Fitting Socket Diameter | 10 |
| Piston End Fitting Bolt Length | 23 |
| Piston End Fitting Material | Steel |
| Cylinder End Fitting P/N | 255765 |
| Cylinder End Fitting Type | Forks |
| Cylinder End Fitting Description | GG20 M5 Ø5 – Clevis Small 6mm Rod |
| Cylinder End Fitting Thread | M5 |
| Cylinder End Fitting Installation Length (mm) | 20 |
| Cylinder End Fitting Thickness (mm) | 5 |
| Cylinder End Fitting Width (mm) | 10 |
| Cylinder End Fitting Cross Hole (mm) | 5 |
| Cylinder End Fitting Material | Steel |
