IndustryLine Gas Springs

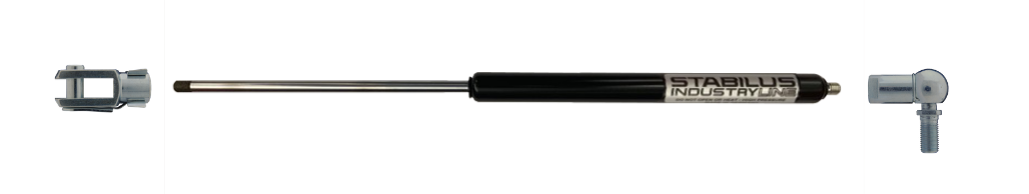

G0615005010174GG20WX220290N
Gas Spring P/N 620716
Product G
Series 0615 (6mm Rod x 15mm Cylinder)
Stroke (mm) 50
Damping or Breaking Direction 1
Installation Length (mm) 174
End Fitting (Piston Rod End) GG20
End Fitting (Cylinder End) WX22
Force (N) 290
Piston End Fitting P/N 255765
Piston End Fitting Type Forks
Piston End Fitting Description GG20 M5 Ø5 – Clevis Small 6mm Rod
Piston End Fitting Thread M5
Piston End Fitting Installation Length (mm) 20
Piston End Fitting Thickness (mm) 5
Piston End Fitting Width (mm) 10
Piston End Fitting Cross Hole (mm) 5
Piston End Fitting Material Steel
Cylinder End Fitting P/N 258633
Cylinder End Fitting Type Socket with Ball Stud
Cylinder End Fitting Description WX22 M5/M8 CS10 Ball Joint 10mm 6mm Rod (w/Stud)
Cylinder End Fitting Thread M5
Cylinder End Fitting Installation Length (mm) 22
Cylinder End Fitting Socket Diameter 10
Cylinder End Fitting Bolt Length 23
Cylinder End Fitting Material Steel
